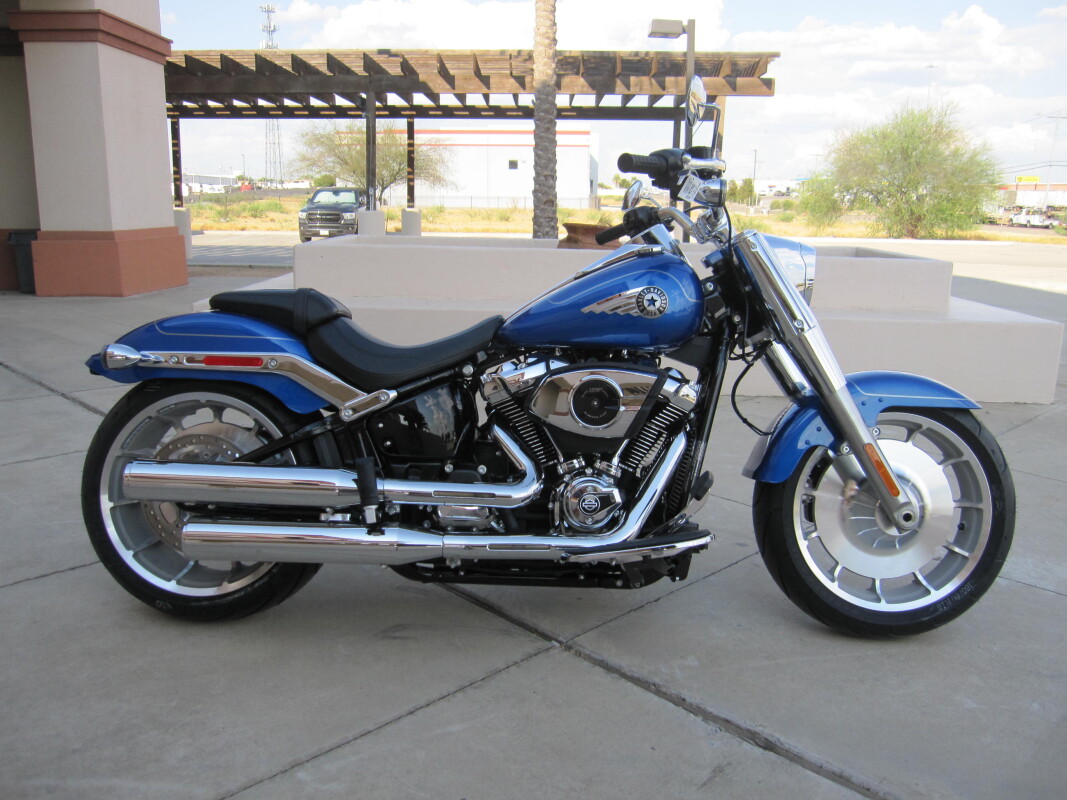

2025 Harley-Davidson® Fat Boy® – Blue Burst | Laredo Harley-Davidson

Make a bold statement on the road with the 2025 Harley-Davidson® Fat Boy® in Blue Burst, available at Laredo Harley-Davidson. Known for its iconic design and commanding presence, the Fat Boy® blends classic Harley-Davidson® style with modern performance features for an unforgettable riding experience.

Powered by the Milwaukee-Eight® 114 engine, the Fat Boy® delivers powerful torque, smooth acceleration, and the unmistakable Harley-Davidson® rumble. The striking Blue Burst finish highlights the motorcycle’s muscular frame, solid-disc wheels, and blacked-out components, creating a visually stunning cruiser that stands out in any setting.

Designed for both comfort and control, the 2025 Fat Boy® features premium suspension, ergonomic seating, and advanced handling, making it ideal for city streets, open highways, and long-distance cruising. Its bold styling and performance-oriented design make it a favorite among riders who want power, presence, and classic Harley-Davidson® attitude.

Visit Laredo Harley-Davidson today to explore the 2025 Harley-Davidson® Fat Boy® Blue Burst and schedule a test ride. Experience the perfect combination of iconic style, modern performance, and legendary Harley-Davidson® craftsmanship.

Specifications

Dimensions

add remove
- Length:

  93.1 in
- Seat height, unladen:

  26.6 in
- Ground clearance:

  4.9 in
- Trail:

  4.1 in
- Wheelbase:

  65.0 in
- Tires, front specifications:

  160/60R18,70V,BW
- Tires, rear specifications:

  240/40R18,79V,BW
- Fuel Capacity:

  5.0 gal
- Oil capacity:

  5 qt.
- Weight, as shipped:

  668 lbs
- Weight, in running order:

  694 lb
- Tire, type:

  Michelin® Scorcher 11 front and rear
Engine

add remove
- Engine:

  Milwaukee-Eight® 117 Custom
- Bore:

  4.1 in
- Stroke:

  4.5 in
- Displacement:

  117.35 in³
- Compression ratio:

  10.3:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  2-into-2 staggered; catalyst in muffler
Performance

add remove
- Engine torque testing method:

  EC 134/2014
- Engine torque:

  126.1 ft-lb
- Engine torque (RPM):

  3000
- Horsepower:

  104 HP / 77 kW @ 4800 rpm
- Lean angle, right (deg.):

  25.6
- Lean angle, left (deg.):

  25.6
- Fuel economy testing method:

  EU 134/2014
- Fuel economy:

  47 mpg (5 l/100 km)
Powertrain

add remove
- Primary drive:

  Chain, 34/46 ratio
- Gear ratios (overall) 1st:

  9.311
- Gear ratios (overall) 2nd:

  6.454
- Gear ratios (overall) 3rd:

  4.793
- Gear ratios (overall) 4th:

  3.882
- Gear ratios (overall) 5th:

  3.307
- Gear Ratios (overall) 6th:

  2.79
Chassis

add remove
- Front fork:

  Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring; "beer can" covers
- Rear shocks:

  Hidden, free piston, coil-over monoshock; 43mm stroke; hydraulic preload adjustment
- Wheels, front type:

  Machined, Lakester cast aluminum
- Wheels, rear type:

  Machined, Lakester cast aluminum
- Brakes, type:

  Front and rear silver, Split 7-spoke floating rotors
- Brakes, caliper type:

  4-piston fixed front and 2-piston floating rear
