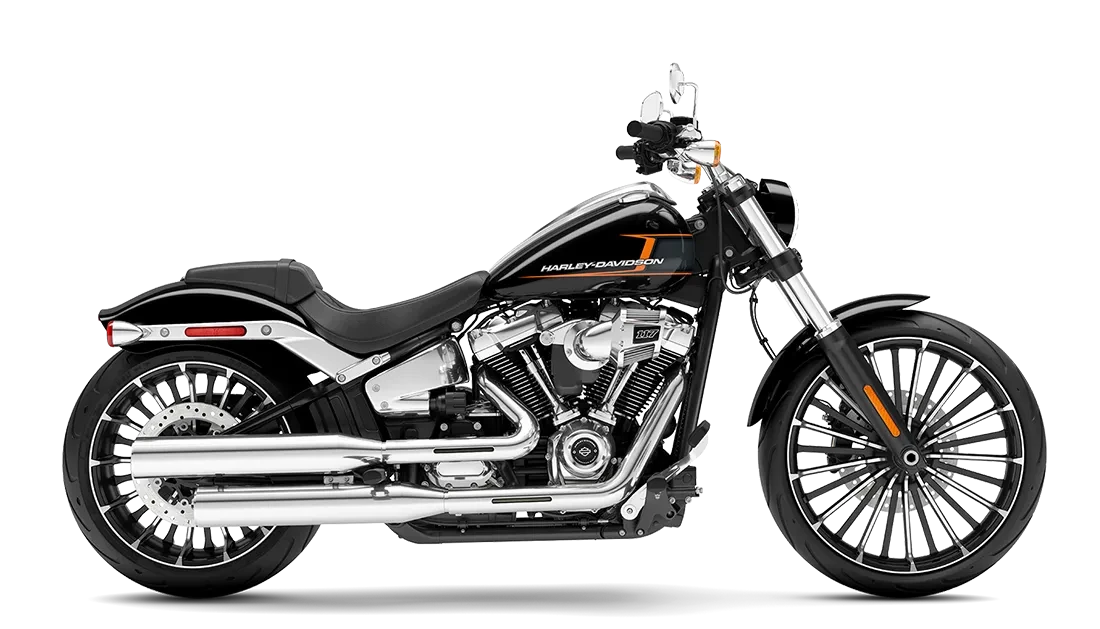

2024 Harley-Davidson® Breakout® 117 Vivid Black – Laredo Harley-Davidson

Turn heads and experience unmatched power with the 2024 Harley-Davidson® Breakout® 117 in Vivid Black. Built for riders who want a bold custom cruiser with premium performance, this Breakout delivers aggressive styling, impressive torque, and the unmistakable attitude that defines Harley-Davidson motorcycles.

At the heart of this machine is the Milwaukee-Eight® 117 engine, delivering exhilarating power and responsive performance for a thrilling ride every time you twist the throttle. The Breakout’s long, low profile, massive rear tire, stretched fuel tank, and chrome finishes create a custom-inspired look that stands apart from the crowd.

Designed for confident cruising, the 2024 Breakout features modern technology, refined handling, and rider-focused comfort while maintaining the raw, stripped-down style that makes this Softail® model a favorite among motorcycle enthusiasts. The deep Vivid Black finish enhances its sleek lines and muscular stance, giving this Harley-Davidson cruiser an unmistakable presence on the road.

Visit Laredo Harley-Davidson today to experience the 2024 Harley-Davidson Breakout 117 Vivid Black and discover the perfect combination of Milwaukee power, custom style, and legendary Harley-Davidson performance. Your next ride starts here.

Specifications

Dimensions

add remove
- Length:

  93.3 in
- Seat height, unladen:

  26.2 in
- Ground clearance:

  4.5 in
- Rake (steering head):

  34
- Trail:

  5.7 in
- Wheelbase:

  66.7 in
- Tires, front specifications:

  130/60B21,63H,BW
- Tires, rear specifications:

  240/40R18,79V,BW
- Fuel Capacity:

  5.0 gal
- Oil capacity:

  5 qt.
- Weight, as shipped:

  653 lbs
- Weight, in running order:

  683 lb
- Tire, type:

  Michelin^® Scorcher^® "11" front and rear
Engine

add remove
- Engine:

  Milwaukee-Eight™ 117
- Bore:

  4.1 in
- Stroke:

  4.5 in
- Displacement:

  117.35 in³
- Compression ratio:

  10.2:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  2-into-2 staggered; catalyst in muffler
Performance

add remove
- Engine torque testing method:

  EC 134/2014
- Engine torque:

  123.2 ft-lb
- Engine torque (RPM):

  3500
- Horsepower:

  101 HP / 75 kW @ 4750 rpm
- Lean angle, right (deg.):

  26.8
- Lean angle, left (deg.):

  26.8
- Fuel economy testing method:

  EU 134/2014
- Fuel economy:

  47 mpg (5 l/100 km)
- CO₂ emissions testing method:

  EU 134/2014
- CO₂ emissions :

  135 g/km CO₂
Powertrain

add remove
- Primary drive:

  Chain, 34/46 ratio
- Gear ratios (overall) 1st:

  9.311
- Gear ratios (overall) 2nd:

  6.454
- Gear ratios (overall) 3rd:

  4.793
- Gear ratios (overall) 4th:

  3.882
- Gear ratios (overall) 5th:

  3.307
- Gear Ratios (overall) 6th:

  2.79
Chassis

add remove
- Front fork:

  Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring
- Rear shocks:

  Hidden, free piston, coil-over monoshock; 43mm stroke; toolless hydraulic preload adjustment
- Wheels, front type:

  Gloss black, 26-spoke cast aluminum
- Wheels, rear type:

  Gloss black, 26-spoke cast aluminum
- Brakes, type:

  Front and rear black, Split 7-spoke floating rotors
- Brakes, caliper type:

  4-piston fixed front and 2-piston floating rear
Electric

add remove
- Lights (as per country regulation), indicator:

  All LED, low beam, high beam and signature position lamp; Bullet-style, multi-function LED stop/tail/turn signals; Incandescent bullets
- Gauges:

  2.14-inch viewable area LCD display with speedometer, gear, odometer, fuel level, clock, trip, range and tachometer indication
